Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

CREATING A WARDROBE DETAIL DRAWING,FLOOR PLAN, KITCHEN LAYOUT AND COLUMN DETAIL USING AUTOCAD 1.WARDROBE DETAIL DRAWING AIM- TO DRAFT THE PLAN, ELEVATION, SECTION, AND DETAIL DRAWING OF THE WARDROBE IN AUTOCAD. INTRODUCTION- The Wardrobe detail drawing is created using AutoCAD software. The main purpose…

Aditya Bhute
updated on 09 Aug 2022

CREATING A WARDROBE DETAIL DRAWING,FLOOR PLAN, KITCHEN LAYOUT AND COLUMN DETAIL USING AUTOCAD

1.WARDROBE DETAIL DRAWING

AIM-

TO DRAFT THE PLAN, ELEVATION, SECTION, AND DETAIL DRAWING OF THE WARDROBE IN AUTOCAD.

INTRODUCTION-

The Wardrobe detail drawing is created using AutoCAD software. The main purpose of this challenge is to be familiar with the annotation and dimensioning command.So the wardrobe is drafted step by step and procedure is mention below with diagrams and final result is given.

TOOLS USED-

LINE - Command for line is L
CONSTRUCTTION LINE - Command for construcction line is XL
TRIM - Command for trim is TR
TEXT- Command for text is DTEXT/MTEXT
DIMENSION - Command for line is Dimension DIM
OFFSET - Command for offset is O
FILLET - Command for fillet is F
SPLINE - Command for spline is SPL
LAYERS -Command for layer is LA
CIRCLE - Command for circle is C
RECTANGLE - Command for the rectangle is REC
HATCH - Command for hatch is H
ARC - Command for arc is A
ARROW - Command for arrow is LE

PROCEDURE-

STEP 1

Go to START MENU, and select AutoCAD.
The User Interface of AutoCAD is OPEN.
Click the start Drawing tab
The workspace of AutoCad is open,
Enter UNITS in the command box.
Select DECIMAL in TYPE, 0 in PRECISION, and MILLIMETER in UNITS TO SCALE INSERTED CONTENT.
Select Angle type as DECIMAL DEGREE, and precision is 0 and direction are Anti-clockwise.
Press OK.

STEP 2

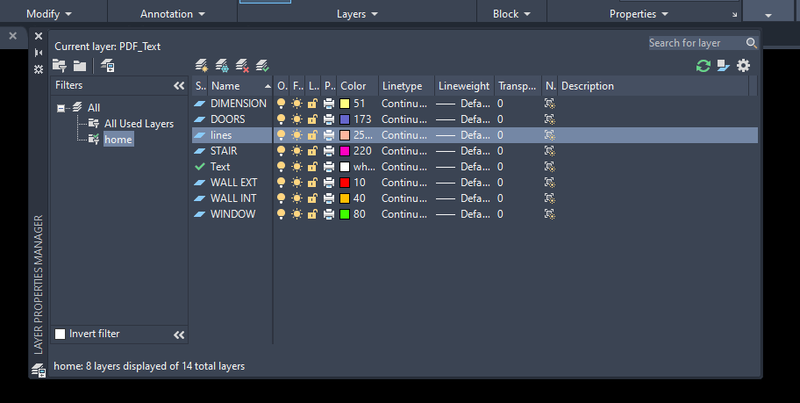

Click on LAYER PROPERTIES tool or type LA and press ENTER
A Layer Dialog box will open.
Click on CREATE NEW LAYER and give a name to layer
Here, I create a 4 new layer with proper name
Then, assign a differnt color for differnt layer accourding to our used.

STEP 3

Select a wardrobe layer
Select a RECTANGLE tool from ribbion or press REC and ENTER
Click on DIMENSION in command line .
Specify a length of rectangle as 2800 and press ENTER
Specif aa Breath of rectangle as 630 and press ENTER.
Press ESC.
Select a RECTANGLE and press X to EXPLODE
Select a OFFSET tool from ribbion or press O and ENTER
Select a right vertical line and
Specify offset distance as 365
press ESC.
Again select a OFFSET and
Specify a offset distance as 20 and give offset to all the line as a width of wardrobe.
For the wardrobe doors, select LINE tool and draw lines
Using 3 point ARC create a arc to represent the door swing.
Next select the wardrobe doors, right click, select Properties and change the Transparency to 50.
Select the MIRROR tool or type a MI and press ENTER
and make a mirror copy of door .
Now select a COPY tool from the ribbion and copy the door and place it in the desired location.
Select a LINE tool and type L or press ENTER.
Create a line over a wardrobe for Hatch to represent a WALL SURFACE.
Now select a hatch ANSI31 and click the surface over the wardrobe.
select a RED layer
Select a CIRCLE tool or type C and press ENTER
Create a circle at a bottom left corner of the wardrobe and arrow using the line tool and TRIM the small segment of circle.
Select a DIMENSION layer
Open a dimension-style dialog box by pressing DIMSTY in the command line.
Click on the Modify tab.
Now go to the text and change the text height and color as per Requirement.
Here, I used a 50 unit for a text height
Open a dimension-style dialog box by pressing DIMSTY in the command line.
Click on the Modify tab.
Now go to the text and change the arrow size and color as per Requirement.
Here, I used a 40 unit for a arrow size.
Now select a TEXT layer
Type a DTEXT
specify the base point and angle of rotation as 0
Specify a text height as 85

STEP 4

Select a wardrobe layer
Select a RECTANGLE tool from ribbion or press REC and ENTER
Click on DIMENSION in command line .
Specify a length of rectangle as 2800 and press ENTER
Specif aa Breath of rectangle as 2600 and press ENTER.
Press ESC.
Select a RECTANGLE and press X to EXPLODE
Select a OFFSET tool from ribbion or press O and ENTER
Select a top horizontal line andpress T for through and press M for mutipal offset
Specify offset distance as 12 and then 488
press ESC.
Select a OFFSET tool from ribbion or press O and ENTER
Select a vertical line and
Specify offset distance as 12 and give offset from all side a width of wardrobe
press ESC.
Select a OFFSET tool from ribbion or press O and ENTER
Select a right vertical line and
Specify offset distance as 365and give offset
press ESC.
Select a Verticel line and devide in 4 segment and draw a straight line downwards.
Select a LINE tool and type L or press ENTER.
Create a line left side of a wardrobe for Hatch to represent a WALL SURFACE.
Now select a hatch ANSI31 and click the surface over the wardrobe.
Again select a HATCH ANSI34 and click inside wardrobe and give transparency as 50
Open a dimension-style dialog box by pressing DIMSTY in the command line.
Click on the Modify tab.
Now go to the text and change the text height and color as per Requirement.
Here, I used a 50 unit for a text height
Open a dimension-style dialog box by pressing DIMSTY in the command line.
Click on the Modify tab.
Now go to the text and change the arrow size and color as per Requirement.
Here, I used a 40 unit for a arrow size.
Now select a TEXT layer
Type a DTEXT
specify the base point and angle of rotation as 0
Specify a text height as 85

STEP 5

Select a COPY tool from the ribbion or type C and press ENTER.
Select a object as wardrobe constructed in step 4 and make a copy
Select a ERASE Tool fom the ribbion or type E and press ENTER.
Now select a 2nd and 4th vertical line and press enter
Select a OFFSET tool from the ribbion or type O and press ENTER.
Select a horizzontal center line and
Specify a offset distance as 300 and give it 4 time dowwnward.
Again Select a offset tool
Specify offset distance as 12 abd offset all the the inwards as a width of wardrobe
Now draw a LINE from the the midpoint to divide the block in 2 column AND GIVE THE WIDTH AS 20
Select A TRIM command form the ribbion or type TR an press ENTER.
Now trim thwe unwanted line
Select a LINE tool and type L or press ENTER.
Create a line left side of a wardrobe for Hatch to represent a WALL SURFACE.
Now select a hatch ANSI31 and click the surface over the wardrobe.

Open a dimension-style dialog box by pressing DIMSTY in the command line.
Click on the Modify tab.
Now go to the text and change the text height and color as per Requirement.
Here, I used a 50 unit for a text height
Open a dimension-style dialog box by pressing DIMSTY in the command line.
Click on the Modify tab.
Now go to the text and change the arrow size and color as per Requirement.
Here, I used a 40 unit for a arrow size.
Now select a TEXT layer
Type a DTEXT
specify the base point and angle of rotation as 0
Specify a text height as 85

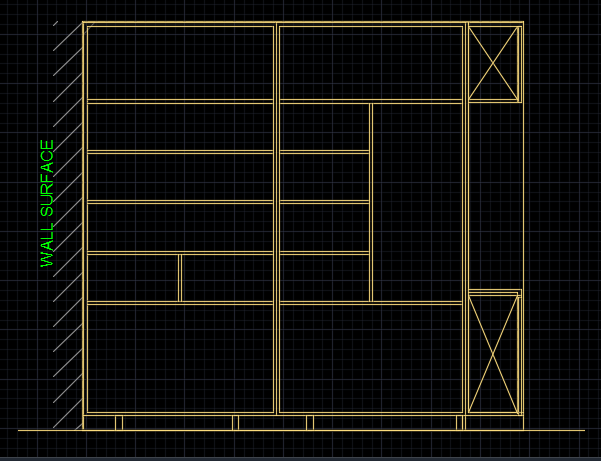

STEP 6

Using the rectangle, arc, lines, offset commands the internal detailing was done with transparency value of 50.
Open a dimension-style dialog box by pressing DIMSTY in the command line.
Click on the Modify tab.
Now go to the text and change the text height and color as per the Requirement.
Here, I used a 50 unit for a text height
Open a dimension-style dialog box by pressing DIMSTY in the command line.
Click on the Modify tab.
Now go to the text and change the arrow size and color as per Requirement.
Here, I used a 40 unit for a arrow size.
Now select a TEXT layer
Type a DTEXT
specify the base point and angle of rotation as 0
Specify a text height as 85

STEP 7

Selct the RECTANGLE tool or type a REC and press ENTER
Click on dimension in the command line
Specify the length og rectangle ass 630 and
Specify width of rectangle as 2600 and
Prees ESC
Select a RECTANGLE and press X to EXPLODE
Select a OFFSET tool from ribbion or press O and ENTER
Select a top horizontal line andpress T for through and press M for mutipal offset
Specify offset distance as 12 and then 520 and again 1180
press ESC.
Again Select a offset tool
Specify offset distance as 12 and offset all the lines inwards as a width of wardrobe
Select a LINE tool and type L or press ENTER.
Create a line left side of a wardrobe for Hatch to represent a WALL SURFACE.
Now select a hatch ANSI31 and click surface over the wardthe robe.
gain select a HATCH ANSI34 and click inside a wardrobe and give transparency as 50

Open a dimension-style dialog box by pressing DIMSTY in the command line.
Click on the Modify tab.
Now go to the text and change the arroTHE size and color as per Requirement.
Here, I used a 40 unit for a arrow size.
Now select a TEXT layer
Type a DTEXT
specify the base point and angle of rotation as 0
Specify a text height as 85

STEP 8

Selct the RECTANGLE tool or type a REC and press ENTER
Click on dimension in the command line
Specify the length og rectangle ass 630 and
Specify width of rectangle as 2600 and
Prees ESC
Select a RECTANGLE and press X to EXPLODE
Select a OFFSET tool from ribbion or press O and ENTER
Select a top horizontal line andpress T for through and press M for mutipal offset
Specify offset distance as 12 and then 620 and again 1180
press ESC.
Again Select a offset tool
Specify offset distance as 20 and offset all the lines inwards as a width of wardrobe
Open a dimension-style dialog box by pressing DIMSTY in the command line.
Click on the Modify tab.
Now go to the text and change the arrow size and color as per Requirement.
Here, I used a 40 unit for a arrow size.
Now select a TEXT layer
Type a DTEXT
specify the base point and angle of rotation as 0
Specify a text height as 85

STEP 9

Selct the RECTANGLE tool or type a REC and press ENTER
Click on dimension in the command line
Specify the length og rectangle ass 630 and
Specify width of rectangle as 2600 and
Prees ESC
Select a RECTANGLE and press X to EXPLODE
Select a OFFSET tool from ribbion or press O and ENTER
Select a top horizontal line andpress T for through and press M for mutipal offset
Specify offset distance as 12 and then 1180
press ESC.
Again Select a offset tool
Specify offset distance as 20 and offset all the lines inwards as a width of wardrobe
Open a dimension-style dialog box by pressing DIMSTY in the command line.
Click on the Modify tab.
Now go to the text and change the arrow size and color as per Requirement.
Here, I used a 40 unit for a arrow size.
Now select a TEXT layer
Type a DTEXT
specify the base point and angle of rotation as 0
Specify a text height as 85

RESULT-

2.FLOOR PLAN

AIM-

TO DRAFT THE FLOOR PLAN IN AUTOCAD.

INTRODUCTION-

The floor plan drawing is created using a AutoCAD software. The main purpose of this challenge is to be familiar with the annotation and dimensioning command.So the fllor plan is drafted step by step and procedure is mention below with diagrams and final result is given.

TOOLS USED-

LINE - Command for line is L
CONSTRUCTTION LINE - Command for construcction line is XL
TRIM - Command for trim is TR
TEXT- Command for text is DTEXT/MTEXT
DIMENSION - Command for line is Dimension DIM
OFFSET - Command for offset is O
FILLET - Command for fillet is F
SPLINE - Command for spline is SPL
LAYERS -Command for layer is LA
CIRCLE - Command for circle is C
RECTANGLE - Command for the rectangle is REC
HATCH - Command for hatch is H
ARC - Command for arc is A
ARROW - Command for arrow is LE

PROCEDURE-

STEP 1

Go to START MENU, and select AutoCAD.
The User Interface of AutoCAD is OPEN.
Click the start Drawing tab
The workspace of AutoCad is open,
Enter UNITS in the command box.
Select DECIMAL in TYPE, 0 in PRECISION, and MILLIMETER in UNITS TO SCALE INSERTED CONTENT.
Select Angle type as DECIMAL DEGREE, and precision is 0 and direction are Anti-clockwise.
Press OK.

STEP 2

Click on LAYER PROPERTIES tool or type LA and press ENTER
A Layer Dialog box will open.
Click on CREATE NEW LAYER and give a name to layer
Here, I create a 8 new layer with proper name
Then, assign a differnt color for differnt layer accourding to our used.

STEP 3

Give a command XL and press ENTER for construction line
now draw 2 XL line horizontal and vertical respectively.
and Trim the rest of the portion after intersection
Select the OFFSET from the ribbion or type O and press EENTER
Click on THROUGH on the command line
Now click on MULTIPAL in the command line
Specify the Offset distance for first room 3880 in X DIRECTION and 4350 in Y DIRECTION
To create a wall give the offset of 300mm for external wall and 150mm for internal wall
Repeat the same process
Specify the Offset distance for second room 1750 in X DIRECTION and 3000 in Y DIRECTION
Specify the Offset distance fort third room 3830 in X DIRECTION and 4500 in Y DIRECTION
Specify the Offset distance for the fourth room 4300 in X DIRECTION and 3200 in Y DIRECTION
Specify the Offset distance for fifth room 5310 in X DIRECTION and 9710 in Y DIRECTION
Specify the Offset distance for the sixth room 1570 in X DIRECTION and 3000 in Y DIRECTION
Specify the Offset distance for seventh room 2000 in X DIRECTION and 3220 in Y DIRECTION
Specify the Offset distance for eight room 2150 in X DIRECTION and 2100 in Y DIRECTION
Specify the Offset distance for ninh room 1900 in X DIRECTION and 1600 in Y DIRECTION
Specify the Offset distance for tenth room 1800 in X DIRECTION and 1650 in Y DIRECTION
Select the TRIM Ccommand from the ribbion and trim the unwanted lines.

STEP 4

Select a LINE command from the ribbion or type L and press ENTER
Draw a line for required size and trim the portion for door,window and ventilator
the required size of doors,windows amd ventilator are
D1 = 1220
D2 = 1050
D3 = 950
D4 = 830
D5 = 930
W1 = 2430
W2 = 3030
W3 = 930
W4 = 1030
W9 = 730
W10 = 1730
V1 = 730
V2 = 630

STEP 5

Select a DOORS LAYER
Let's create d1 door first
Select a LINE tool from the ribbion or type L and press ENETR
Create a Hingue of 130 x 60 and create a vertical line of length 1220 as a door size is 1220
Now selelct a arc tool from the ribbion or type A and press ENTER
Select a start,end ,direction in the command line slect starting point as end point of line and end point as wall edge and give direction and press enter.
Repeat the same process for wall the doors.
Select a window layer
Let's create a W1 window ,size of window is 2430
Selecta RECTANGLE tool from the ribbion or type REC and press ENTER
Click on dimension in the command line
Specify the length as 2430
and the width of rectangle as a size of walll 300 or 150
Now create a line inn between to represent a glass of window
Repeat the same process to create all the window and ventilator
Select a STAIR LAYER
create a line on stair portion and give the offset of 300mm as a TREAD is 300mm

STEP 6

Place the furniture from the DESIGN CENTER
Command for DESIGN CENTER is ADCENTER
Select the firniture acourding to the give diagram and import in our project

STEP 7

These outdoor seating with canopy is drafted in privious challanges
COPY from that drawing and import it in these drawing and scale it accourding to our use.

RESULT-

3.KITCHEN LAYOUT

AIM-

TO DRAFT THE KITCCHEN LAYOUT DRAWING IN AUTOCAD.

INTRODUCTION-

The KITCHEN detail drawing is created using a AutoCAD software. The main purpose of this challenge is to be familiar with the annotation and dimensioning command.So the layout is drafted step by step and procedure is mention below with diagrams and final result is given.

0OOLS USED-

LINE - Command for line is L
CONSTRUCTTION LINE - Command for construcction line is XL
TRIM - Command for trim is TR
TEXT- Command for text is DTEXT/MTEXT
DIMENSION - Command for line is Dimension DIM
OFFSET - Command for offset is O
FILLET - Command for fillet is F
SPLINE - Command for spline is SPL
LAYERS -Command for layer is LA
CIRCLE - Command for circle is C
RECTANGLE - Command for the rectangle is REC
HATCH - Command for hatch is H
ARC - Command for arc is A
ARROW - Command for arrow is LE

PROCEDURE-

STEP 1

Go to START MENU, and select AutoCAD.
The User Interface of AutoCAD is OPEN.
Click the start Drawing tab
The workspace of AutoCad is open,
Enter UNITS in the command box.
Select DECIMAL in TYPE, 0 in PRECISION, and MILLIMETER in UNITS TO SCALE INSERTED CONTENT.
Select Angle type as DECIMAL DEGREE, and precision is 0 and direction are Anti-clockwise.
Press OK.

STEP 1

Selct the RECTANGLE tool or type a REC and press ENTER
Click on dimension in the command line
Specify the length og rectangle ass 4300 and
Specify width of rectangle as 3200 and
Prees ESC
Select the OFFSET from the ribbion or type O and press EENTER
Click on THROUGH on the command line
Now click on MULTIPAL in the command line
Specify the Offset distance as 230
press ESC

STEP 2

Select the OFFSET from the ribbion or type O and press EENTER
Click on THROUGH on the command line
Now click on MULTIPAL in the command line
Specify the Offset distance as 35
Select new line and give offset distance as 900
Select new line and give offset distance as 450
Select new line and give offset distance as 900
Select new line and give offset distance as 450
Select new line and give offset distance as 450
Select new line and give offset distance as 450
Select new line and give offset distance as 560
Select botton horzontal line and give offset distance as 600
Select botton horzontal line and give offset distance as1500
Select right vertical and give offset distance as 700
Select right vertical and give offset distance as 1300
press ESC

STEP 3

Select the OFFSET from the ribbion or type O and press EENTER
Click on THROUGH on the command line
Now click on MULTIPAL in the command line
Specify the Offset distance as 35
Select new line and give offset distance as 945
Select new line and give offset distance as 300
Select new line and give offset distance as 900
Select new line and give offset distance as 300
Select new line and give offset distance as 450
Select new line and give offset distance as 600
Select new line and give offset distance as 1000
press ESC

STEP 4

Open a dimension-style dialog box by pressing DIMSTY in the command line.
Click on the Modify tab.
Now go to the text and change the text height and color as per Requirement.
Here, I used a 80 unit for a text height
Open a dimension-style dialog box by pressing DIMSTY in the command line.
Click on the Modify tab.
Now go to the text and change the arrow size and color as per Requirement.
Here, I used a 50 unit for a arrow size.
Now select a TEXT layer
Type a DTEXT
specify the base point and angle of rotation as 0
Specify a text height as 100

STEP 5

Select a COPY tool from the ribbion ortype CO and press ENTER
Select complete plan ,Specify the base poitn and make one more copy
Select a ERASE tool from the ribbion ortype E and press ENTER
Select all the object inside the plan and press ENTER

STEP 6

Open a dimension-style dialog box by pressing DIMSTY in the command line.
Click on the Modify tab.
Now go to the text and change the text height and color as per Requirement.
Here, I used a 80 unit for a text height
Open a dimension-style dialog box by pressing DIMSTY in the command line.
Click on the Modify tab.
Now go to the text and change the arrow size and color as per Requirement.
Here, I used a 50 unit for a arrow size.
Now select a TEXT layer
Type a DTEXT
specify the base point and angle of rotation as 0
Specify a text height as 100

RESULT -

4.COLUMN DETAILS

AIM-

TO DRAFT COLUMN DEATAIL DRAWING OF WARDROBE IN AUTOCAD.

INTRODUCTION-

The Column detail drawing is created using a AutoCAD software. The main purpose of this challenge is to be familiar with the annotation and dimensioning command.So the column detail is drafted step by step and procedure is mention below with diagrams and final result is given.

TOOLS USED-

LINE - Command for line is L
CONSTRUCTTION LINE - Command for construcction line is XL
TRIM - Command for trim is TR
TEXT- Command for text is DTEXT/MTEXT
DIMENSION - Command for line is Dimension DIM
OFFSET - Command for offset is O
FILLET - Command for fillet is F
SPLINE - Command for spline is SPL
LAYERS -Command for layer is LA
CIRCLE - Command for circle is C
RECTANGLE - Command for the rectangle is REC
HATCH - Command for hatch is H
ARC - Command for arc is A
ARROW - Command for arrow is LE

PROCEDURE-

STEP 1

Go to START MENU, and select AutoCAD.
The User Interface of AutoCAD is OPEN.
Click the start Drawing tab
The workspace of AutoCad is open,
Enter UNITS in the command box.
Select ENGINEERING in TYPE, 0'-0" in PRECISION, and INCHES in UNITS TO SCALE INSERTED CONTENT.
Select Angle type as DECIMAL DEGREE, and precision is 0 and direction are Anti-clockwise.
Press OK.

STEP 2

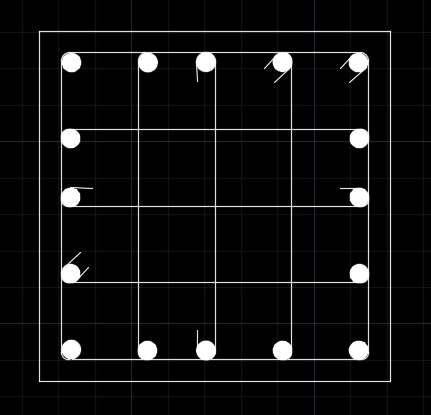

Selct the RECTANGLE tool or type a REC and press ENTER
Click on dimension in the command line
Specify the length og rectangle as 24" and
Specify width of rectangle as 24"and
Prees ESC
Selct the OFFSET tool or type a O and press ENTER
Specify the offset distance as 1.5"
XPLODE the inner square by command X ENTER
Devide the line in 4 segments and draw a horizontal and vertical line

STEP 3

Selct the circle tool or type a C and press ENTER
Click on RADIUS in the command line
Specify the radius of circle as 1" for 25 dia bar and 0.62" for 16 dia bar
and place it in desired location
Select a FILLET tool or type F and press ENTER
Specify a radius for fillet is 0.5"
click on multipals in command line and give fillet to the desired loacation
Select a hatch as solid and fill it in circle
Type a DTEXT
specify the base point and angle of rotation as 0
Specify a text height as 3" and type a to represent the 25 dia bar
go to properties and change the font as romans

STEP 4

Selct the RECTANGLE tool or type a REC and press ENTER
Click on dimension in the command line
Specify the length og rectangle as 5' and
Specify width of rectangle as 5'and
Prees ESC
Selct the OFFSET tool or type a O and press ENTER
Specify the offset distance as 1.5" and give three time downward
Type a DTEXT
specify the base point and angle of rotation as 0
Specify a text height as 3"

STEP 5

Selct the RECTANGLE tool or type a REC and press ENTER
Click on dimension in the command line
Specify the length og rectangle as 24" and
Specify width of rectangle as 24"and
Prees ESC
Selct the OFFSET tool or type a O and press ENTER
Specify the offset distance as 1.5"
XPLODE the inner square by command X ENTER
Devide the line in 4 segments and draw a horizontal and vertical line

STEP 6

Selct the circle tool or type a C and press ENTER
Click on RADIUS in the command line
Specify the radius of circle as 0.62" for 16 dia bar
and place it in desired location
Select a FILLET tool or type F and press ENTER
Specify a radius for fillet is 0.5"
click on multipals in command line and give fillet to the desired loacation
Select a hatch as solid and fill it in circle

STEP 7

Selct the RECTANGLE tool or type a REC and press ENTER
Click on dimension in the command line
Specify the length og rectangle as 5' and
Specify width of rectangle as 5'and
Prees ESC
Selct the OFFSET tool or type a O and press ENTER
Specify the offset distance as 1.5" and give three time downward
Type a DTEXT
specify the base point and angle of rotation as 0
Specify a text height as 3"

STEP 8

Selct the RECTANGLE tool or type a REC and press ENTER
Click on dimension in the command line
Specify the length og rectangle as 24" and
Specify width of rectangle as 24"and
Prees ESC
Selct the OFFSET tool or type a O and press ENTER
Specify the offset distance as 1.5"
XPLODE the inner square by command X ENTER
Devide the line in 4 segments and draw a horizontal and vertical line

STEP 9

Selct the circle tool or type a C and press ENTER
Click on RADIUS in the command line
Specify the radius of circle as 1" for 25 dia bar and 0.8" for 16 dia bar
and place it in desired location
Select a FILLET tool or type F and press ENTER
Specify a radius for fillet is 0.5"
click on multipals in command line and give fillet to the desired loacation
Select a hatch as solid and fill it in circle
Type a DTEXT
specify the base point and angle of rotation as 0
Specify a text height as 3" and type a to represent the 25 dia bar
go to properties and change the font as romans

STEP 10

Selct the RECTANGLE tool or type a REC and press ENTER
Click on dimension in the command line
Specify the length og rectangle as 5' and
Specify width of rectangle as 5'and
Prees ESC
Selct the OFFSET tool or type a O and press ENTER
Specify the offset distance as 1.5" and give three time downward
Type a DTEXT
specify the base point and angle of rotation as 0
Specify a text height as 3"

RESULT-

5. RAFT FOUNDATION

AIM-

TO DRAFT THE RAFT FOUNDATION DEATAIL DRAWING OF WARDROBE IN AUTOCAD.

INTRODUCTION-

The foundation detail drawing is created using a AutoCAD software. The main purpose of this challenge is to be familiar with the annotation and dimensioning command.So the raft foundation is drafted step by step and procedure is mention below with diagrams and final result is given.

TOOLS USED-

LINE - Command for line is L
CONSTRUCTTION LINE - Command for construcction line is XL
TRIM - Command for trim is TR
TEXT- Command for text is DTEXT/MTEXT
DIMENSION - Command for line is Dimension DIM
OFFSET - Command for offset is O
FILLET - Command for fillet is F
SPLINE - Command for spline is SPL
LAYERS -Command for layer is LA
CIRCLE - Command for circle is C
RECTANGLE - Command for the rectangle is REC
HATCH - Command for hatch is H
ARC - Command for arc is A
ARROW - Command for arrow is LE

PROCEDURE-

STEP 1

Go to START MENU, and select AutoCAD.
The User Interface of AutoCAD is OPEN.
Click the start Drawing tab
The workspace of AutoCad is open,
Enter UNITS in the command box.
Select ARCHITECTURAL in TYPE, 0'-0 1/2" in PRECISION, and INCHES in UNITS TO SCALE INSERTED CONTENT.
Select Angle type as DECIMAL DEGREE, and precision is 0 and direction are Anti-clockwise.
Press OK.

STEP 2

Select a LINE tool from the ribbion or type L and press ENTER
Specify a first point and second line
change the line type as CENTERX2
Select a OFFSET tool from the ribbion or press O and press ENTER
Click on THROUGH in the command line
Click on Multipals in the command line
select line and give offset up as 10'-4 1/2" , 13'-10 1/2",5'-9",3'9",5'7 1/2",5'-10 1/2",4'9',3'7 1/2",5'-7 1/2"
Press ESC
Draw one horizontal lineat same base point
Select a OFFSET tool from the ribbion or press O and press ENTER
Click on THROUGH in the command line
Click on Multipals in the command line
select line and give offset up as 5'9",2',7',4',4'-6",5'-7 1/2"

STEP 3

Selct the RECTANGLE tool or type a REC and press ENTER
Click on dimension in the command line
Specify the length og rectangle as 24" and
Specify width of rectangle as 24"and
Prees ESC
The various column sizes is as follows: 24"x24", 9"x24", 9"x18, 9"x30 and 9"x36
