Creating various 3D Models like Furniture, Footing, Girder, Column drop with panel and Gable Wall in AutoCad

AIM  - CREATE A 3D FURNITURE ELEMENT AS SHOWN IN THE FIGURE.

ANS -

x



PROCEDURE -



1. UNITS - taking architectuiral unit which is in feet in inches.

2. LINE - taking line tool and create a 3d furniture by relative coordinate  syestem.

3. RELATIVE COORDINATE SYESTEM - to make 3d furniture using relative                                                                                                                                     coordinate syestem. for making object taking a  line tool and giving a length in x - direction which is @3',0,0 ,next  @3',0,0 next  @3',0,0  from its three coorner taking the vertical line in z axis which is @0,0,3'  after that make a horizontal plan by taking a line tool in z direction. after that  taking a line tool taking offset of 2" in front face of the object and making a vertical line which is 2'6" in both side which is shown in the figure.

4. 3DFACE - BY using 3dface select the all face and create the 3d face or  shadded face.

5. DIMENSION - By dimlinear horizontal dimension is easy to provide. for  vertical dimension using ucs face option and                                    select  x and y plan for provide vertical dimension.







AIM - CREATE A 3D MODAL OF ISOLATED FOOTING

ANS -



 PROCEDURE -



1. Create a rectangle having area is @3'x3'

2. OFFSET - Using commond o for offset and taking rectangle is 1 feet and   found  1'x1' rectangle.

3. MOVE - moving the 1x1' rectangle into z direction into 2'

4. EXTRUDE - extruding the bottom rectangle into 6"

5. CREATE A LINE - after moving the rectangle into 2' create a line from its top   to bottom rectangle.

6. DIMENSION - By dimlinear horizontal dimension is easy to provide. for  vertical dimension using ucs face option and                                    select  x and y plan for provide vertical dimension.





AIM - CREATE 3D VEIW OF AASTHO TYPE GIRDER.

ANS -



PROCEDUIRE -

1. LINE - Taking a line tool and create 6" after that create a 1'6" continue   creating a 6" , 1' 6"  after that create a line 6"                    with 45 angle and  create  1'6" 6", 6" , 1'4".

2. LEANGTH - Taking line tool for provide leangth and selecting its refrence  point  and createa 10' long line.

3. DIMENSION - By dimlinear horizontal dimension is easy to provide. for  vertical dimension using ucs face option and                                select  x and y plan for provide vertical dimension.



RESULT -



AIM -  CREATE A 3D MODEL OF DROP COLIMN WITH PANEL AS SHOWN  IN SECTION.

ANS -





PROCEDURE -

1. RECTANGLE - Taking a rectangle tool and  create a 6"x3'6" rectangle.

2. TAPER - AT the distance of 1 feet with inclined angle 45 in both side of the  rectangle create a 1'6" line.

3. provide length - after its edge provide length 10' by taking a line tool.

4. DIMENSION - By dimlinear dimension use to provide dimension.



RESULT -

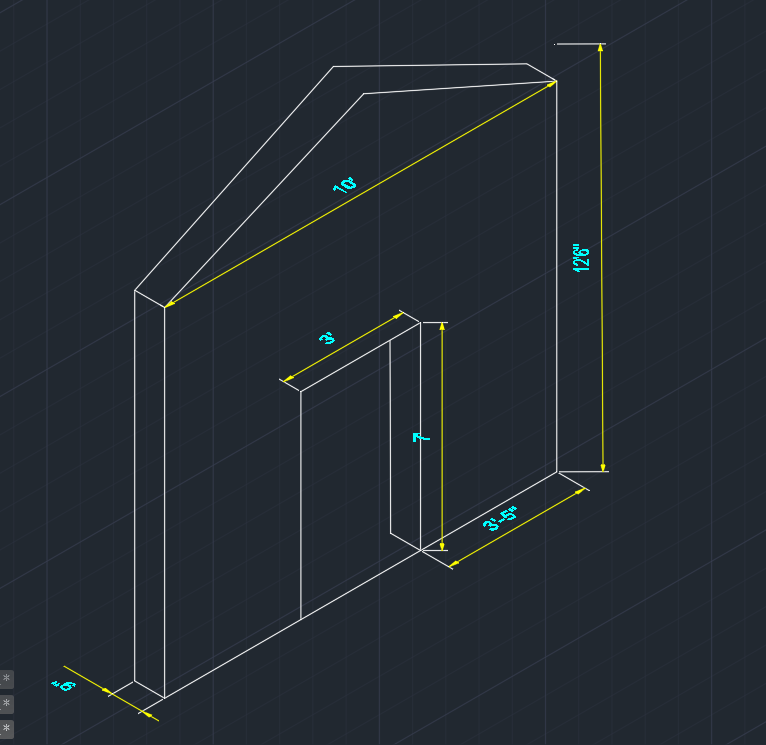

AIM - CREATE A 3D MODEL OF A WALL AS SHOWN IN FIGURE. CONSIDERING WALL THICKNESS IS 9".

ANS -



PROCEDURE -



1. LINE - Taking in left side taking 3'5"  create door and taking line 7' in vertical and 3' in horizontal and downside 7' and left                 side  3'5" again drawing a outer side of the wall at 12' and after that provide a 6" slope to the wall and join in                        another direction.

2. DIMENSION - providing a proper dimension to the object in feet. modified acording to object
